Show me an example

The following is a very basic "end of line" script that:

1. Connects
2. Generates a new tool record by calling an API
3. Writes the unique data to the tool

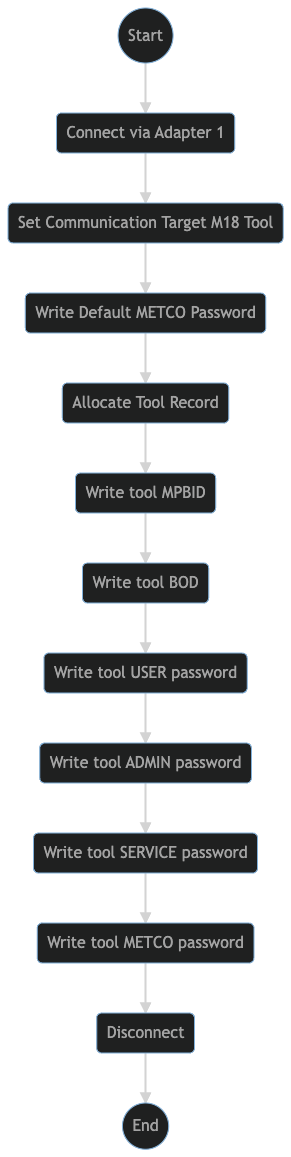

Chart

JSON

{
  "StartAt": "Connect via Adapter 1",
  "MTSLLanguageVersion": "1.0",
  "TimeoutSeconds": 30,
  "States": {
    "Connect via Adapter 1": {
      "Type": "Task",
      "Resource": "Product:Connect",
      "Parameters": {
        "CommunicationMethod": "CommunicationAdapter"
      },
      "ResultPath": "$.ConnectionStatus",
      "Next": "Set Communication Target M18 Tool"
    },
    "Set Communication Target M18 Tool": {
      "Type": "Task",
      "Resource": "OpenLink:SendCommand",
      "Parameters": {
        "MessageType": "70",
        "IsWrite": true,
        "RouteType": "Tool",
        "CommandBody": "01"
      },
      "ResultPath": "$.SetCommTarget",
      "Next": "Write Default METCO Password"
    },
    "Write Default METCO Password": {
      "Type": "Task",
      "Resource": "OpenLink:SendCommand",
      "Parameters": {
        "MessageType": "01",
        "IsWrite": true,
        "RouteType": "Tool",
        "CommandBody": "003B3333333333333333"
      },
      "ResultPath": "$.WriteDefaultPasswordResult",
      "Next": "Allocate Tool Record"
    },
    "Allocate Tool Record": {
      "Type": "Task",
      "Resource": "Network:ApiCall",
      "Parameters": {
        "BaseUrl": "ManufacturingAPI",
        "Method": "POST",
        "Path": "/v1/tool/allocate",
        "Body": {
          "size": 1,
          "productId": 0,
          "client": {
            "name": "<Software Client Running Script>",
            "facility": "<Facility ID defined by ES19-1",
            "timestamp.$": "$.ExecutionStartTime",
            "version.$": "$.ClientVersion",
            "user.$": "$.UserEmail"
          }
        }
      },
      "ResultSelector": {
        "Device.$": "$.devices[0]"
      },
      "ResultPath": "$.Allocation",
      "Next": "Write tool MPBID"
    },
    "Write tool MPBID": {
      "Type": "Task",
      "Resource": "OpenLink:WriteAndVerify",
      "Parameters": {
        "RouteType": "Tool",
        "Address": "0004",
        "Payload.$": "$.Allocation.Device.mpbid"
      },
      "ResultPath": "$.WriteMPBIDResult",
      "Next": "Write tool BOD"
    },
    "Write tool BOD": {
      "Type": "Task",
      "Resource": "OpenLink:WriteAndVerify",
      "Parameters": {
        "RouteType": "Tool",
        "Address": "0011",
        "Payload.$": "States.DecimalToHex($.ExecutionStartTime)"
      },
      "ResultPath": "$.WriteBODResult",
      "Next": "Write tool USER password"
    },
    "Write tool USER password": {
      "Type": "Task",
      "Resource": "OpenLink:WriteAndVerify",
      "Parameters": {
        "RouteType": "Tool",
        "Address": "0043",
        "Payload.$": "$.Allocation.Device.userPassword"
      },
      "ResultPath": "$.WriteUserPasswordResult",
      "Next": "Write tool ADMIN password"
    },
    "Write tool ADMIN password": {
      "Type": "Task",
      "Resource": "OpenLink:WriteAndVerify",
      "Parameters": {
        "RouteType": "Tool",
        "Address": "004B",
        "Payload.$": "$.Allocation.Device.adminPassword"
      },
      "ResultPath": "$.WriteAdminPasswordResult",
      "Next": "Write tool SERVICE password"
    },
    "Write tool SERVICE password": {
      "Type": "Task",
      "Resource": "OpenLink:WriteAndVerify",
      "Parameters": {
        "RouteType": "Tool",
        "Address": "0053",
        "Payload.$": "$.Allocation.Device.servicePassword"
      },
      "ResultPath": "$.WriteServicePasswordResult",
      "Next": "Write tool METCO password"
    },
    "Write tool METCO password": {
      "Type": "Task",
      "Resource": "OpenLink:WriteAndVerify",
      "Parameters": {
        "RouteType": "Tool",
        "Address": "005B",
        "Payload.$": "$.Allocation.Device.metcoPassword"
      },
      "ResultPath": "$.WriteMetcoPasswordResult",
      "Next": "Disconnect"
    },
    "Disconnect": {
      "Type": "Task",
      "Resource": "Product:Disconnect",
      "ResultPath": "$.ConnectionStatus",
      "End": true
    }
  }
}
